AC adapter

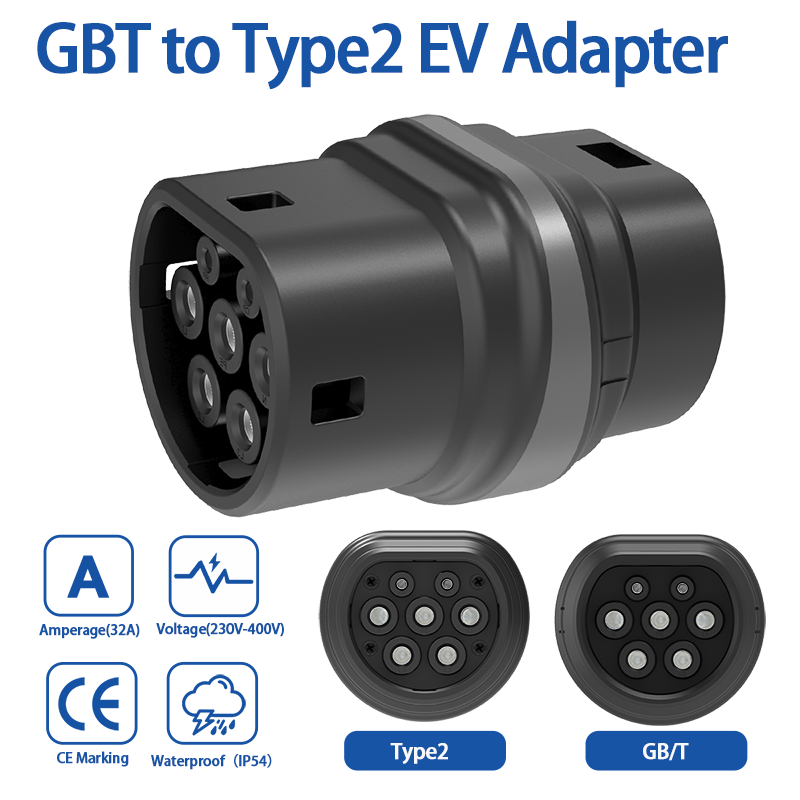

GB/T to Type 2 Three-phase AC Adapter
AC charging adapter for charging Type 2 cars from GB/T infrastructure, suitable for regional compatibility programs and accessory sales.
- Designed for Type 2 vehicle charging scenarios where GB/T charging output is available.
- Compact adapter SKU with multiple color options available from the source material set.
- Useful as a companion accessory for charger importers, distributors and cross-standard vehicle markets.
- Rated current
- 32A
- Rated voltage
- 220-480V 50Hz / 60Hz
- Insulation impedance
- More than 100 mOhm
- Contact impedance
- 0.5 mOhm max
- Terminal temperature rise
- Less than 50K
- Withstand voltage
- 2000V
- Mechanical durability
- No-load more than 10,000 cycles
- Insertion force
- 45N less than F less than 80N
- Operating temperature
- -30C to +50C
- Fire rating
- UL94V-0
- Conductor
- Copper alloy, silver plated surface
- Weight
- 0.31kg

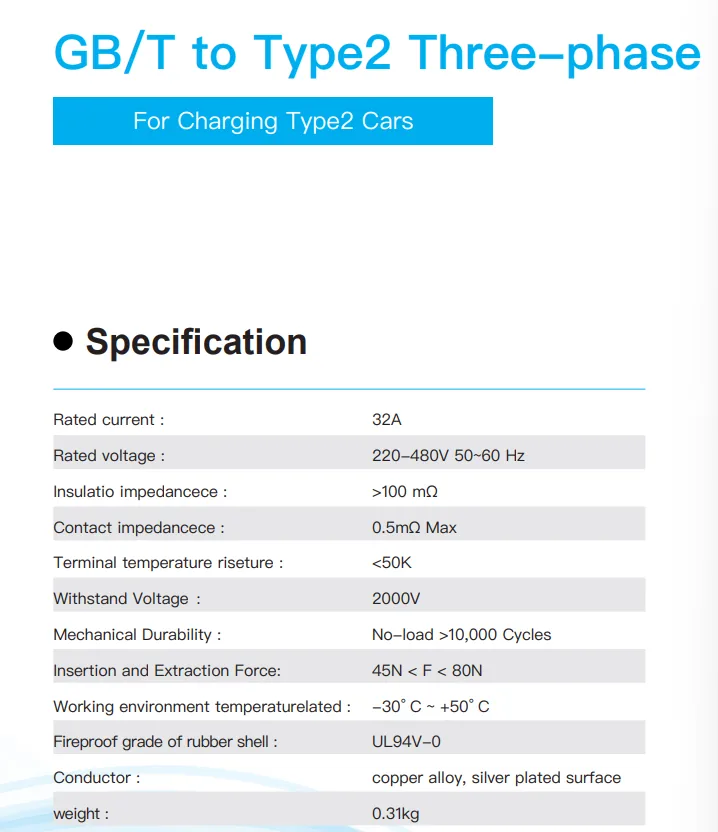

Specification image
Reference specification sheet from the updated source document.
