22kW Cable
Three-phase wallbox configuration for higher-power AC charging.
- Power
- Up to 22kW
- Current
- 6A/8A/13A/16A/24A/32A
- Voltage
- AC 230V/400V 50Hz/60Hz
- Weight
- 6.55 / 5.40 kg
European AC wallbox
S Series AC Wallbox EV Charger
Type 2 AC wallbox product line for European residential, workplace, apartment and light commercial charging projects.
- V0-rated PC enclosure with IK08 impact resistance protection.
- 4.3 inch TFT-LCD screen with real-time charging data visualization.
- Commercial Edition supports OCPP 1.6J/2.0.1 protocol and operator API integration.
- Home Edition supports EN18031-compliant Dynamic Load Balancing.
Power
Control
Network
Power range7.4kW / 11kW / 22kW
Current6A-32A
ConnectorType 2 Cable
Display4.3" LCD
ProtectionIP66 / IK08
ProtocolOCPP optional
11kW Cable
Balanced residential and workplace configuration for European markets.
- Power
- Up to 11kW
- Current
- 6A/8A/13A/16A
- Voltage
- AC 230V 50Hz/60Hz
- Weight
- 5.55 / 4.25 kg
7.4kW Cable
Single-phase configuration for home and light commercial charging.
- Power
- Up to 7.4kW
- Current
- 6A/8A/13A/16A/24A/32A
- Voltage
- AC 230V 50Hz/60Hz
- Weight
- 5.50 / 4.20 kg
General
Dimensions374 x 237 x 146.5 mm
Operating temperature-30C to 55C
Storage temperature-40C to 85C
MaterialPC
Interface

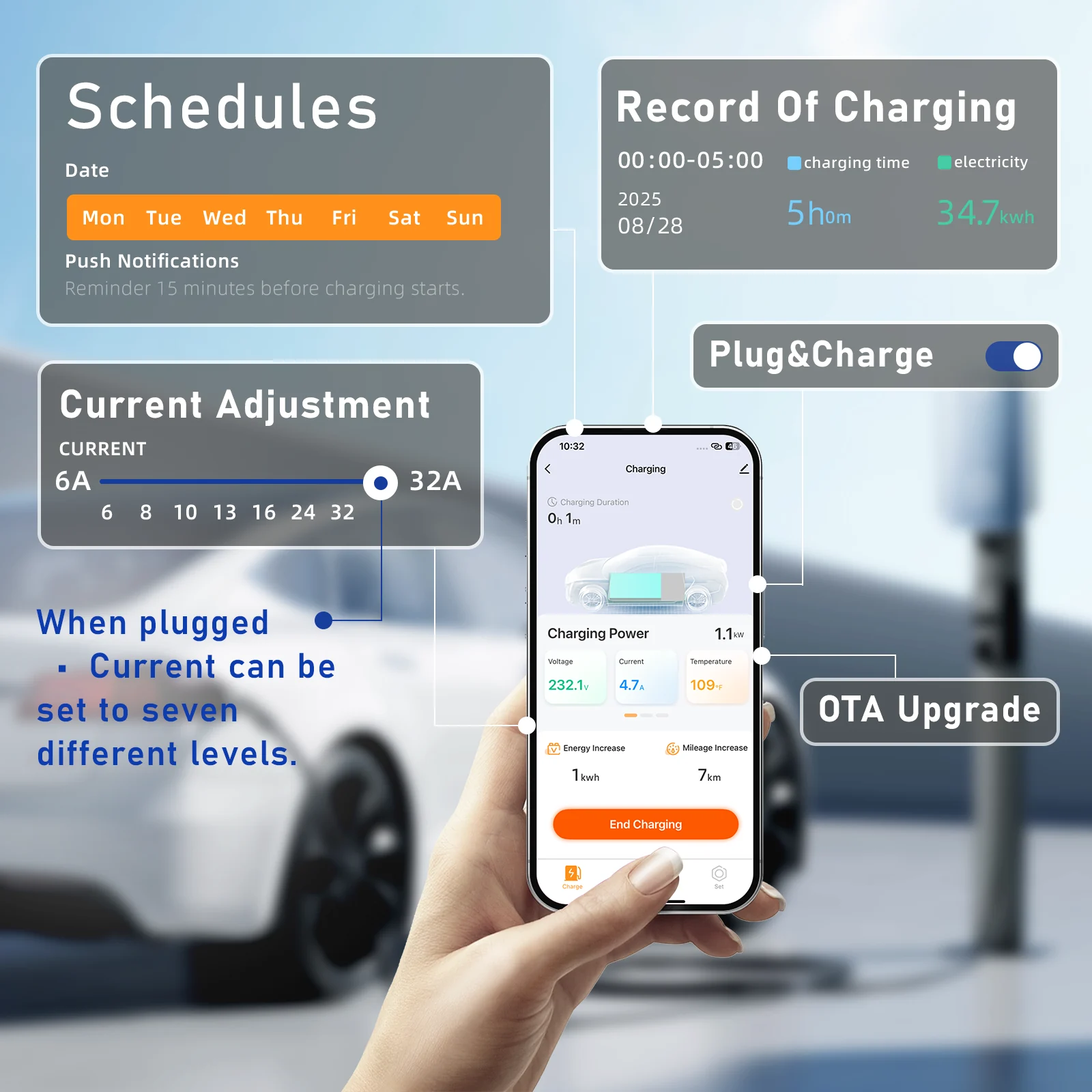

App configurationSmartlife / EV wolfbox
Charging statusDynamic LED ring
AuthenticationRFID
NetworkWiFi, Bluetooth, LAN and 4G optional
Safety and Protocol

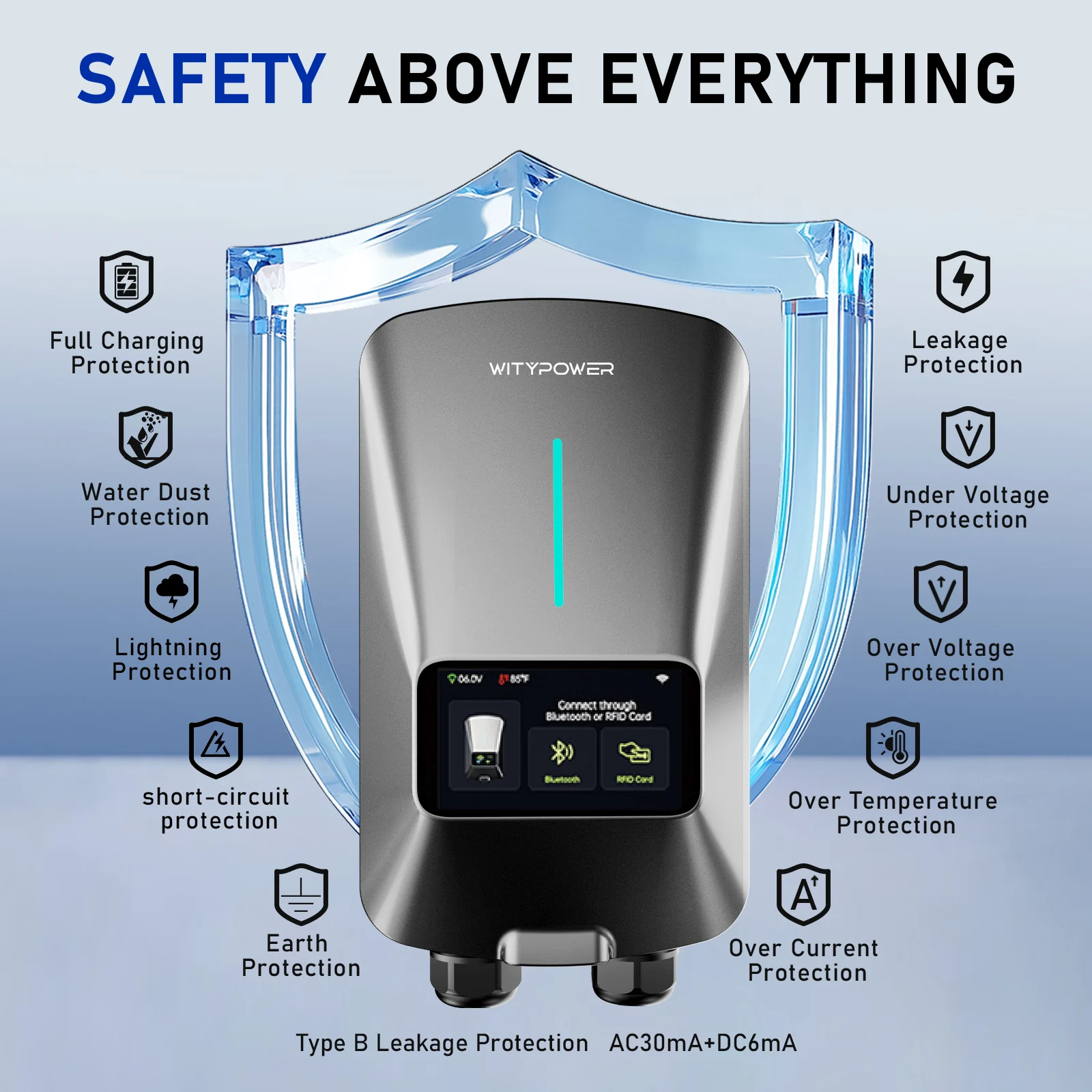

RCDType B
Fire classificationUL94-V0
CertificationTUV-Mark / CE / UKCA / EN18031
OCPPOCPP 1.6 JSON / OCPP 2.0.1 optional

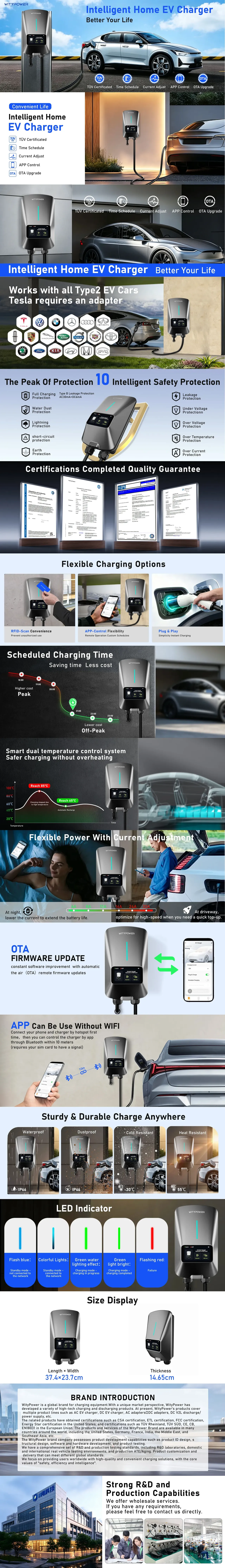

Product details
S Series wallbox charging features.
Type 2 wallbox platform for home, workplace and commercial channels.
S Series combines 7.4kW, 11kW and 22kW AC charging options with LCD display, RFID, app operation and optional operator connectivity for B2B projects.
Smart control
- RFID, APP, voice command and plug-and-charge operation.
- 4.3 inch TFT-LCD with real-time charging data.
- Dynamic LED ring for charging status visibility.
Commercial option
- OCPP 1.6 JSON and OCPP 2.0.1 optional.
- WiFi, Bluetooth, LAN and 4G connectivity options.
- Operator API integration support for managed sites.
Protection and compliance

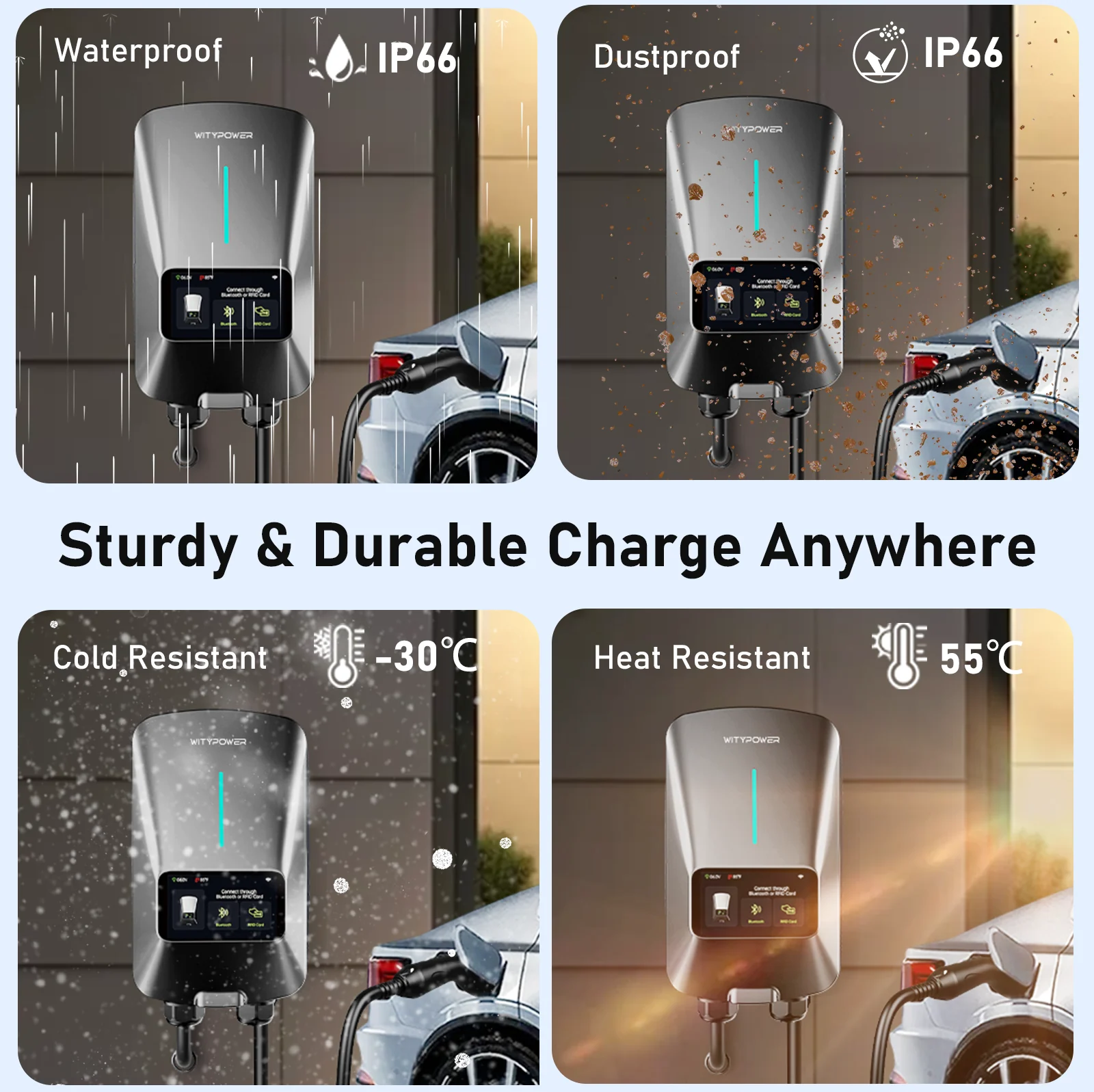

- IP66 waterproof rating and IK08 impact resistance.
- UL94-V0 PC enclosure for fire classification.
- TUV-Mark, CE, UKCA and EN18031 certification coverage.
For installation partners
Installer-ready configuration.
Qualify the S Series around the site supply, operating model and documentation required for the project before confirming an order.
Power and cable scope
Specify the tethered Type 2 S Series configuration around the intended 7.4kW, 11kW or 22kW charging requirement and the site electrical supply.
Operation and connectivity
RFID, display, network connectivity and OCPP are configuration-dependent. Confirm the required operating flow and platform scope during project review.
Documentation support
Request the applicable product data, installation information, wiring requirements and available supporting documentation for the target project.
For B2B buyers
Recommended cooperation scenarios.
Importer / distributor
Build a Type 2 AC wallbox line with brand, packaging and documentation support.
Installer channel
Offer a clear 7.4kW, 11kW and 22kW product ladder for residential and workplace projects.
Commercial operator
Use optional network and OCPP configurations for managed charging installations.
Market planning
Regional priorities.
Europe is not one specification. Use each market's installation practice, channel expectations and project documentation needs to define the final configuration.
Continental Europe
Review local electrical practice, preferred power options and cable handling requirements before preparing the product and quotation scope.
United Kingdom and Ireland
Confirm site requirements, requested connectivity and documentation expectations with the installer, distributor or project owner at qualification.
Multi-market rollouts
Build a market-by-market configuration matrix. OCPP, connectivity and Dynamic Load Balancing should be confirmed for each selected configuration and project.
Ask for S Series pricing, MOQ and customization options.
Send your target market, plug standard, quantity, branding needs and certification requirements.
Send RFQ
